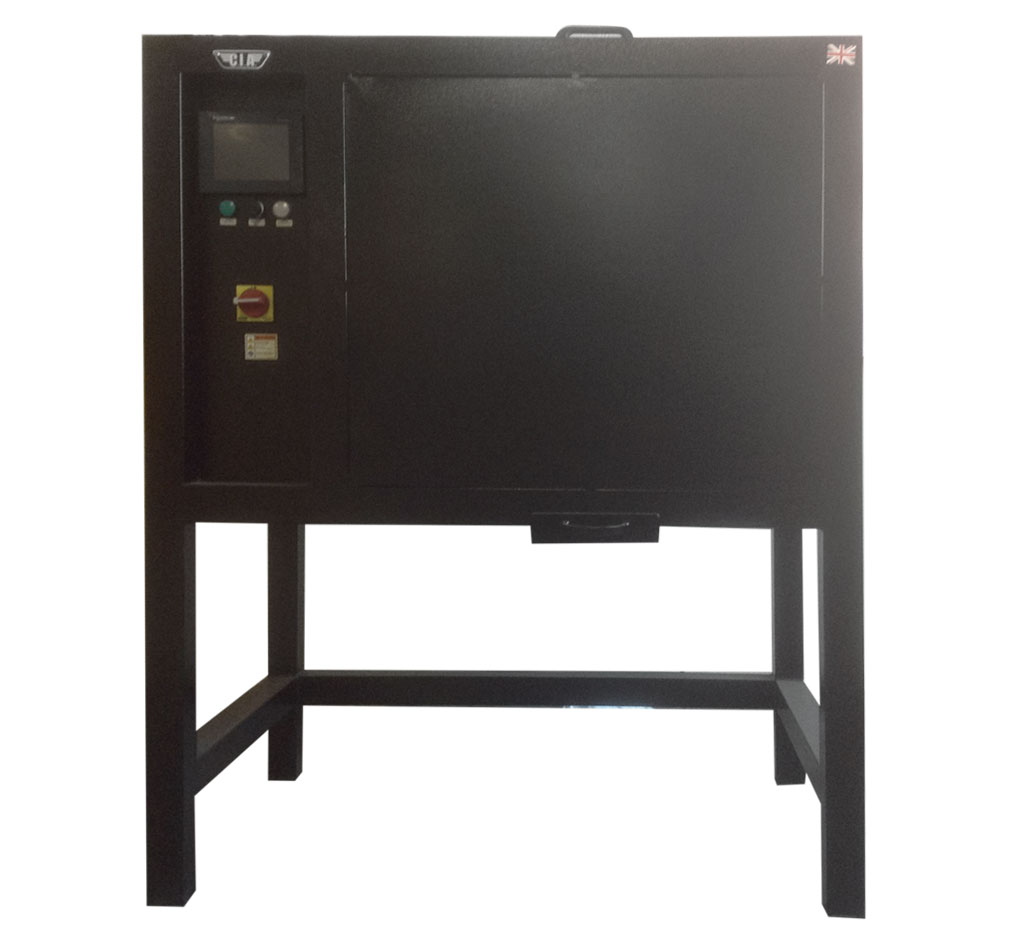

CP200 – PLC Controlled Flux Oven double load
A new concept of oven, for holding and reconditioning flux, usable at mid load with half elements, and full load. Controlled with touch screen PLC, easy to program. Possibility to download by USB port the temperature/time chart.
| CP200 SPECIFICATIONS | |
| Capacity | 100/200 kg |
| Temperature | adjustable up to 400°C |
| PLC | touch screen |
| Voltage | 400VAC on request 220VAC |
| Output | 2,5kW (100kg) 4,8kW (200kg) |
| Internal dims.(WxDxH) | 660x375x720mm |
| External dims. (WxDxH) | 1100x700x1500mm |
| Weight | 170 kg |
